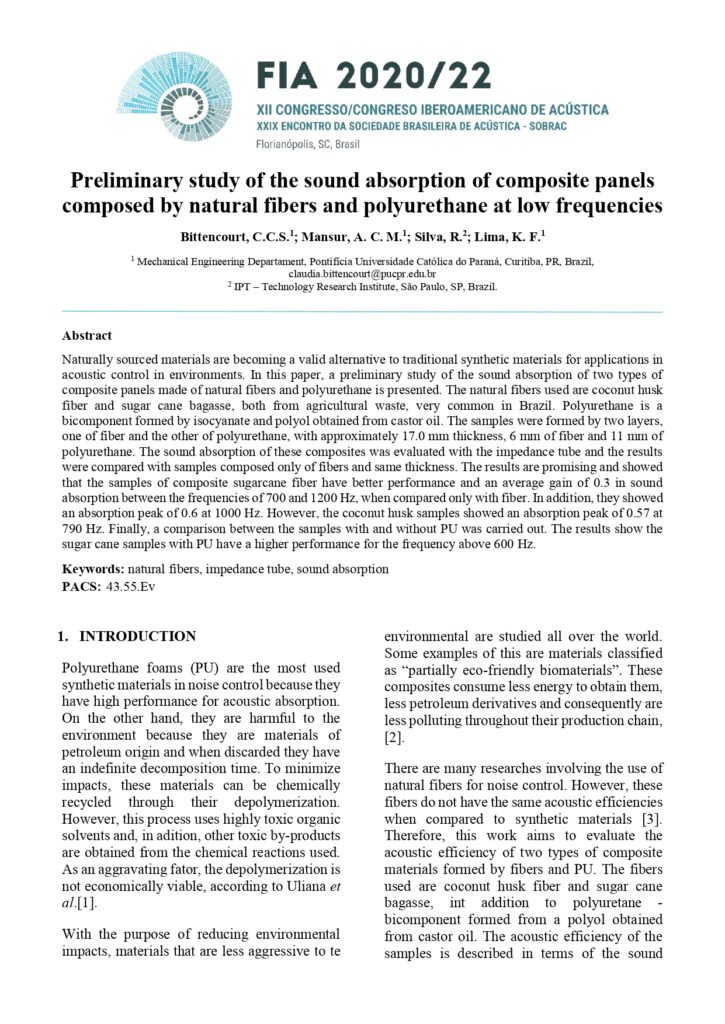

Preliminary study of the sound absorption of composite panels composed by natural fibers and polyurethane at low frequencies

Bittencourt, C.C.S. Mechanical Engineering Departament, Pontifícia Universidade Católica do Paraná, Curitiba, PR, Brazil, claudia.bittencourt@pucpr.edu.br

Mansur, A. C. M. Mechanical Engineering Departament, Pontifícia Universidade Católica do Paraná, Curitiba, PR, Brazil

Silva, R. IPT – Technology Research Institute, São Paulo, SP, Brazil

Lima, K. F. IPT – Technology Research Institute, São Paulo, SP, Brazil

Abstract

Naturally sourced materials are becoming a valid alternative to traditional synthetic materials for applications in acoustic control in environments. In this paper, a preliminary study of the sound absorption of two types of composite panels made of natural fibers and polyurethane is presented. The natural fibers used are coconut husk fiber and sugar cane bagasse, both from agricultural waste, very common in Brazil. Polyurethane is a bicomponent formed by isocyanate and polyol obtained from castor oil. The samples were formed by two layers, one of fiber and the other of polyurethane, with approximately 17.0 mm thickness, 6 mm of fiber and 11 mm of polyurethane. The sound absorption of these composites was evaluated with the impedance tube and the results were compared with samples composed only of fibers and same thickness. The results are promising and showed that the samples of composite sugarcane fiber have better performance and an average gain of 0.3 in sound absorption between the frequencies of 700 and 1200 Hz, when compared only with fiber. In addition, they showed an absorption peak of 0.6 at 1000 Hz. However, the coconut husk samples showed an absorption peak of 0.57 at 790 Hz. Finally, a comparison between the samples with and without PU was carried out. The results show the sugar cane samples with PU have a higher performance for the frequency above 600 Hz.

Keywords:

natural fibers

impedance tube

sound absorption.

References

[1] F. Uliana et al., “Kinetic study of depolymerization of polyurethanes: A experimental and computational insight for chemical recycling,” International Journal of Chemical Kinetics, vol. 52, no. 9, pp. 611–619, 2020, doi: 10.1002/kin.21374.

[2] B. C. Mitra, “Environment friendly composite materials: Biocomposites and green composites,” Defence Science Journal, vol. 64, no. 3, pp. 244–261, 2014, doi: 10.14429/dsj.64.7323.

[3] U. Berardi and G. Iannace, “Predicting the sound absorption of natural materials : Best-fit inverse laws for the acoustic impedance and the propagation constant,” Applied Acoustics, vol. 115, pp. 131–138, 2017, doi: 10.1016/j.apacoust.2016.08.012.

[4] ASTM, “Standard test method for impedance and absorption of acoustical materials using a tube, two microphones and a digital frequency analysis system E1050-10,” American Society for Testing of Materials, vol. 04, no. C, pp. 1–12, 1990, doi: 10.1520/E1050-10.2.

[5] S. Çelebi and H. Küçük, “Acoustic properties of tea-leaf fiber mixed polyurethane composites,” Cellular Polymers, vol. 31, no. 5, pp. 241–255, 2012, doi: 10.1177/026248931203100501.

[6] R. Zulkifli, M. J. Mohd Nor, M. F. M. T. Tahir, A. R. Ismail, and M. Z. Nuawi, “Acoustic Properties of Multi-Layer Coir,” journal of applied sciences, vol. 20, 2008.

[7] G. Iannace, G. Ciaburro, and A. Trematerra, “Modelling sound absorption properties of broom fibers using artificial neural networks,” Applied Acoustics, vol. 163, p. 107239, 2020, doi: 10.1016/j.apacoust.2020.107239.

[8] C. C. B. da Silva, F. J. H. Terashima, N. Barbieri, and K. F. de Lima, “Sound absorption coefficient assessment of sisal, coconut husk and sugar cane fibers for low frequencies based on three different methods,” Applied Acoustics, vol. 156, pp. 92–100, 2019, doi: 10.1016/j.apacoust.2019.07.001.

[9] M. E. Delany and E. N. Bazley, “Acoustical properties of fibrous absorbent materials,” Applied Acoustics, vol. 3, no. 2, pp. 105–116, 1970, doi: 10.1016/0003-682X(70)90031-9.

[10] J. Allard and Y. Champoux, “New empirical equations for sound propagation in rigid frame fibrous materials,” J Acoust Soc Am, vol. 91, no. 6, pp. 3346–3353, 1992, doi: 10.1121/1.402824.

[11] Y. Ji, S. Chen, and W. Zhu, “The effect of pore numbers in the cell walls of soybean oil polyurethane foam on sound absorption performance,” Applied Acoustics, vol. 157, p. 107010, 2020, doi: 10.1016/j.apacoust.2019.107010.

[12] D. L. Johnson, J. Koplik, and R. Dashen, “Theory of dynamic permeability and tortuosity in fluid saturated porous media,” Journal of Fluid Mechanics, vol. 176, no. 1987, pp. 379–402, 1987, doi: 10.1017/S0022112087000727.

[13] M. Vale et al., “Replacement of petroleum-derived diols by sustainable biopolyols in one component polyurethane foams,” Journal of Cleaner Production, vol. 212, pp. 1036–1043, 2019, doi: 10.1016/j.jclepro.2018.12.088.

[14] X. Tang and X. Yan, “Multi-layer fibrous structures for noise reduction,” Journal of the Textile Institute, vol. 108, no. 12, pp. 2096–2106, 2017, doi: 10.1080/00405000.2017.1315793.

[15] A. Kairytė, M. Kirpluks, A. Ivdre, U. Cabulis, S. Vaitkus, and I. Pundienė, “Cleaner production of polyurethane foam: Replacement of conventional raw materials, assessment of fire resistance and environmental impact,” Journal of Cleaner Production, vol. 183, no. 2018, pp. 760–771, 2018, doi: 10.1016/j.jclepro.2018.02.164.

[16] J. Y. Chung and D. A. Blaser, “Transfer function method of measuring in-duct acoustic properties. I. Theory,” Journal of the Acoustical Society of America, vol. 68, no. 3, pp. 907–913, 1980, doi: 10.1121/1.384778.

[17] J. Y. Chung and D. A. Blaser, “Transfer function method of measuring in‐duct acoustic properties. II. Experiment,” J Acoust Soc Am, vol. 68, no. 3, pp. 914 921, 1980, doi: 10.1121/1.384779.

[18] H. Bodén, M. Åbom, and H. Bod, “Influence of errors on the two microphone method for measuring acoustic properties in ducts Influence of errors on the two-microphone method for measuring acoustic properties in ducts,” vol. 541, no. 1986, 1998, doi: 10.1121/1.393542.
