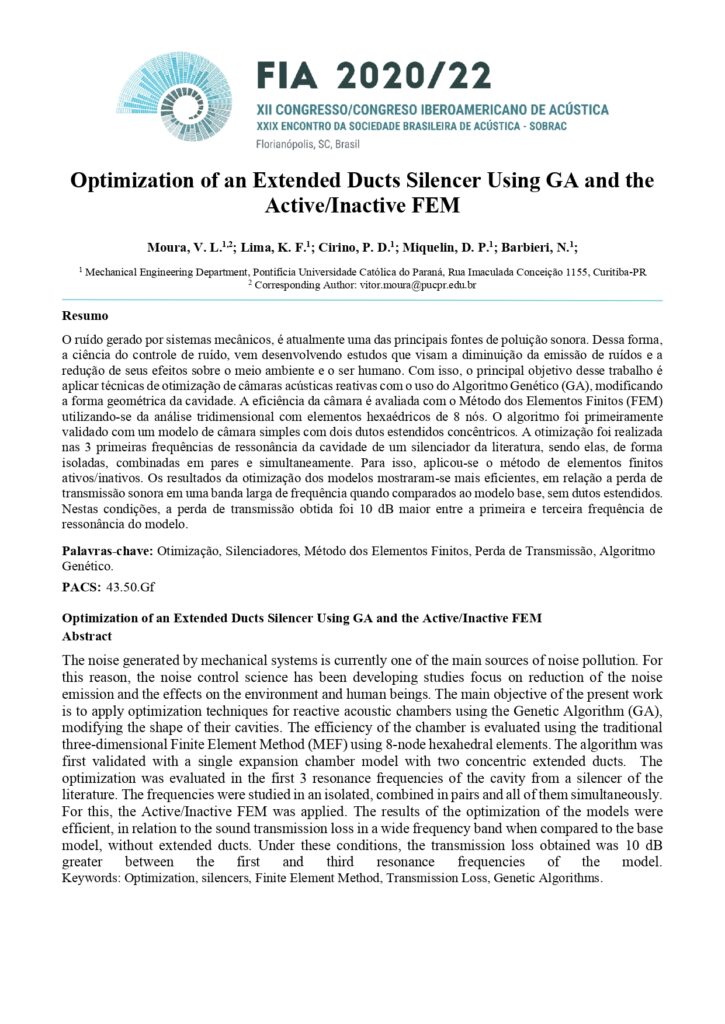

Optimization of an Extended Ducts Silencer Using GA and the Active/Inactive FEM

Moura, V. L. Mechanical Engineering Department, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição 1155, Curitiba-PR, vitor.moura@pucpr.edu.br

Lima, K. F. Mechanical Engineering Department, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição 1155, Curitiba-PR

Cirino, P. D. Mechanical Engineering Department, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição 1155, Curitiba-PR

Miquelin, D. P. Mechanical Engineering Department, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição 1155, Curitiba-PR

Barbieri, N. Mechanical Engineering Department, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição 1155, Curitiba-PR

Resumo

O ruído gerado por sistemas mecânicos, é atualmente uma das principais fontes de poluição sonora. Dessa forma, a ciência do controle de ruído, vem desenvolvendo estudos que visam a diminuição da emissão de ruídos e a redução de seus efeitos sobre o meio ambiente e o ser humano. Com isso, o principal objetivo desse trabalho é aplicar técnicas de otimização de câmaras acústicas reativas com o uso do Algoritmo Genético (GA), modificando a forma geométrica da cavidade. A eficiência da câmara é avaliada com o Método dos Elementos Finitos (FEM) utilizando-se da análise tridimensional com elementos hexaédricos de 8 nós. O algoritmo foi primeiramente validado com um modelo de câmara simples com dois dutos estendidos concêntricos. A otimização foi realizada nas 3 primeiras frequências de ressonância da cavidade de um silenciador da literatura, sendo elas, de forma isoladas, combinadas em pares e simultaneamente. Para isso, aplicou-se o método de elementos finitos ativos/inativos. Os resultados da otimização dos modelos mostraram-se mais eficientes, em relação a perda de transmissão sonora em uma banda larga de frequência quando comparados ao modelo base, sem dutos estendidos. Nestas condições, a perda de transmissão obtida foi 10 dB maior entre a primeira e terceira frequência de ressonância do modelo.

Palavras-chaves:

Otimização

Silenciadores

Método dos Elementos Finitos

Perda de Transmissão

Algoritmo Genético.

Abstract

The noise generated by mechanical systems is currently one of the main sources of noise pollution. For this reason, the noise control science has been developing studies focus on reduction of the noise emission and the effects on the environment and human beings. The main objective of the present work is to apply optimization techniques for reactive acoustic chambers using the Genetic Algorithm (GA), modifying the shape of their cavities. The efficiency of the chamber is evaluated using the traditional three-dimensional Finite Element Method (MEF) using 8-node hexahedral elements. The algorithm was first validated with a single expansion chamber model with two concentric extended ducts. The optimization was evaluated in the first 3 resonance frequencies of the cavity from a silencer of the literature. The frequencies were studied in an isolated, combined in pairs and all of them simultaneously. For this, the Active/Inactive FEM was applied. The results of the optimization of the models were efficient, in relation to the sound transmission loss in a wide frequency band when compared to the base model, without extended ducts. Under these conditions, the transmission loss obtained was 10 dB greater between the first and third resonance frequencies of the model.

Keywords:

Optimization

silencers

Finite Element Method

Transmission Loss

Genetic Algorithms.

Referências

[1] Díaz J; Arroyo V; Ortiz C; Carmona R; Linares C. Effect of environmental factors on low weight in non premature births: A time series analysis. PLoS One 2016;11. doi: 10.1371/journal.pone.0164741.

[2] Seidler A; Wagner M; Schubert M; Dröge P; Römer K; Pons-kühnemann J; et al. International Journal of Hygiene and Aircraft , road and railway traffic noise as risk factors for heart failure and hypertensive heart disease — A case-control study based on secondary data. Int J Hyg Environ Health 2016;219:749–58. doi: 10.1016/j.ijheh.2016.09.012.

[3] Jafari Z; Kolb BE; Mohajerani MH. Chronic tra ffi c noise stress accelerates brain impairment and cognitive decline in mice. Exp Neurol 2018;308:1–12. doi: 10.1016/j.expneurol.2018.06.011.

[4] van den Bosch M; Meyer-Lindenberg A. Environmental Exposures and Depression: Biological Mechanisms and Epidemiological Evidence. Annu Rev Public Health 2019;40. doi: 10.1146/annurev-publhealth 040218-044106.

[5] Young CJ; Crocker MJ. Prediction of transmission loss in mufflers by the finite−element method. J Acoust Soc Am 1975;57:144. doi: 10.1121/1.380424.

[6] Selamet A; Ji ZL. Acoustic Attenuation Performance of Circular Expansion Chambers With Extended Inlet/Outlet. J Sound Vib 1999;223:197–212. doi: 10.1006/jsvi.1998.2138.

[7] Selamet A; Denia FD; Besa AJ. Acoustic behavior of circular dual-chamber mufflers. J Sound Vib 2003;265:967–85. doi: 10.1016/S0022-460X(02)01258 0.

[8] Seo SH; Kim YH. Silencer design by using array resonators for low-frequency band noise reduction. J Acoust SocAm 2005;118:2332–8. doi: 10.1121/1.2036222.

[9] Wu CJ; Wang XJ; Tang HB. Transmission loss prediction on a single-inlet / double-outlet cylindrical expansion-chamber muffler by using the modal meshing approach. Appl Acoust 2007;68:660–81. doi: 10.1016/j.apacoust.2006.09.005.

[11] Xu MB; Selamet A; Kim H. Dual Helmholtz resonator. Appl Acoust 2010;71:822–9. doi: 10.1016/j.apacoust.2010.04.007.

[12] Mimani A; Munjal ML. Acoustical analysis of a general network of multi-port elements-an impedance matrix approach. Int J Acoust Vib 2012;17:23–46. doi: 10.20855/ijav.2012.17.1297.

[13] Vijayasree NK; Munjal ML. On an Integrated Transfer Matrix method for multiply connected mufflers. J Sound Vib 2012;331:1926–38. doi: 10.1016/j.jsv.2011.12.003.

[14] Fang Z; Ji ZL; Liu CY. Acoustic attenuation analysis of silencers with multi-chamber by using coupling method based on subdomain division technique. Appl Acoust 2017;116:152–63. doi: 10.1016/j.apacoust.2016.09.019.

[15] Chhibber U; Kumar R; Haldar S; Hota RN. Design and analysis of a compact acoustic fi lter for broad band noise absorption. Appl Acoust 2018;140:30–8. doi: 10.1016/j.apacoust.2018.05.011.

[16] Munjal ML. Acoustics of ducts and mufflers. 2nd ed. John Wiley; 2014.

[17] Zienkiewicz OC; Taylor RL. Finite Element Method: Volume 1 - The Basis. 5th ed. Butterworth Heinemann; 2000.

[18] Cook RD; Malkus DS; Plesha ME; Witt RJ. Concepts & Appls of Finite Element Analysis. 4 ed. J. Wiley; 2001.

[19] Wu TW; Zhang P; Cheng CYR. Boundary element analysis of mufflers with an improved method for deriving the four-pole parameters. J Sound Vib 1998;217:767–79. doi: 10.1006/jsvi.1998.1800.

[20] Sullivan JW; Crocker MJ. Analysis of concentric tube resonators having unpartitioned cavities. Journal of the Acoustical Society of America, vol. 64, pp. 207-215, 1978.

[21] Holland JH. Adaptation in Natural and Artificial Systems. 1975.

[22] Goldberg DE. Genetic Algorithms in Search, Optimization, and Machine Learning. 1st ed. Boston, MA: Addison-Wesley Professional; 1989.

[23] Belegundu A; Chandrupatla T. Optimization Concepts and Applications in Engineering. 2nd ed. New York, USA: Cambridge University Press; 2011.

[24] Carroll DL. Genetic algorithms and optimizing chemical oxygen-iodine lasers. Dev Theor Appl Mech 1996;18:411–24.

[25] Barbieri R, Barbieri N. The technique of active / inactive finite elements for the analysis and optimization of acoustical chambers. Appl Acoust 2012;73:184–9. doi: 10.1016/j.apacoust.2011.08.002.

[28] Lima, K. F., Lenzi, A., Barbieri. R., The study of reactive silencers by shape and parametric optimization techniques. Appl Acoust 2011; 72:142-50. doi: 10.1016/j.apacoust.2010.11.008
