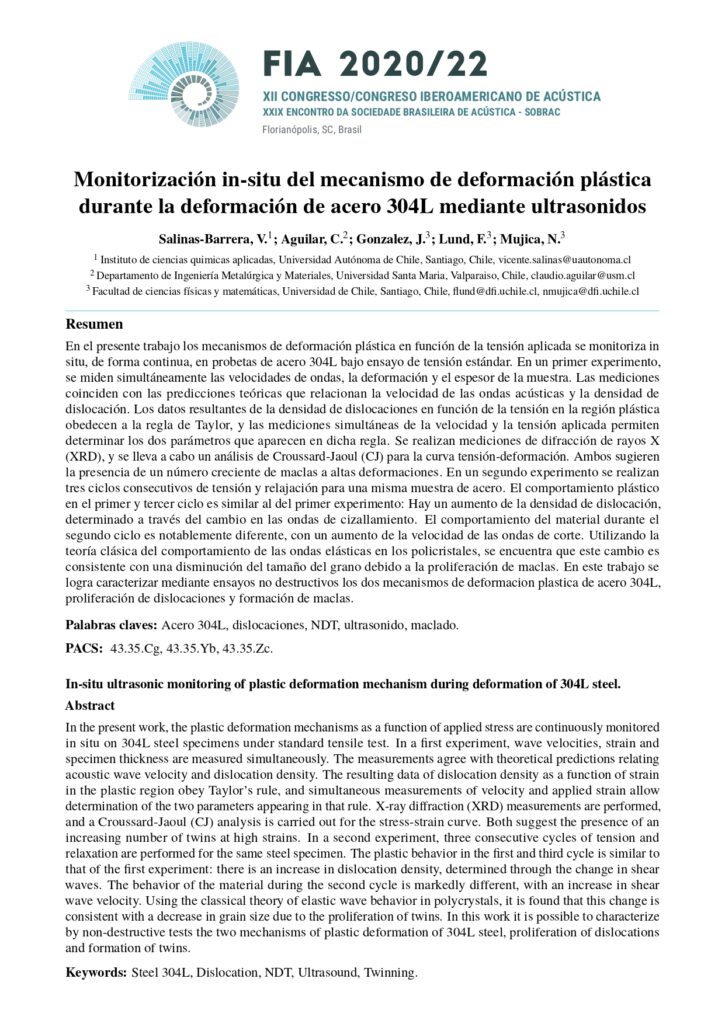

Monitorización in-situ del mecanismo de deformación plástica durante la deformación de acero 304L mediante ultrasonidos

In-situ ultrasonic monitoring of plastic deformation mechanism during deformation of 304L steel.

Salinas-Barrera, V. Instituto de ciencias quimicas aplicadas, Universidad Autónoma de Chile, Santiago, Chile, vicente.salinas@uautonoma.cl

Aguilar, C. Departamento de Ingeniería Metalúrgica y Materiales, Universidad Santa Maria, Valparaiso, Chile, claudio.aguilar@usm.cl

Gonzalez, J. Facultad de ciencias físicas y matemáticas, Universidad de Chile, Santiago, Chile

Lund, F. Facultad de ciencias físicas y matemáticas, Universidad de Chile, Santiago, Chile, flund@dfi.uchile.cl

Mujica, N. Facultad de ciencias físicas y matemáticas, Universidad de Chile, Santiago, Chile, nmujica@dfi.uchile.cl

Abstract

In the present work, the plastic deformation mechanisms as a function of applied stress are continuously monitored in situ on 304L steel specimens under standard tensile test. In a first experiment, wave velocities, strain and specimen thickness are measured simultaneously. The measurements agree with theoretical predictions relating acoustic wave velocity and dislocation density. The resulting data of dislocation density as a function of strain in the plastic region obey Taylor's rule, and simultaneous measurements of velocity and applied strain allow determination of the two parameters appearing in that rule. X-ray diffraction (XRD) measurements are performed, and a Croussard-Jaoul (CJ) analysis is carried out for the stress-strain curve. Both suggest the presence of an increasing number of twins at high strains. In a second experiment, three consecutive cycles of tension and relaxation are performed for the same steel specimen. The plastic behavior in the first and third cycle is similar to that of the first experiment: there is an increase in dislocation density, determined through the change in shear waves. The behavior of the material during the second cycle is markedly different, with an increase in shear wave velocity. Using the classical theory of elastic wave behavior in polycrystals, it is found that this change is consistent with a decrease in grain size due to the proliferation of twins. In this work it is possible to characterize by non-destructive tests the two mechanisms of plastic deformation of 304L steel, proliferation of dislocations and formation of twins.

Keywords:

Steel 304L

Dislocation

NDT

Ultrasound

Twinning.

Resumen

En el presente trabajo los mecanismos de deformación plástica en función de la tensión aplicada se monitoriza in situ, de forma continua, en probetas de acero 304L bajo ensayo de tensión estándar. En un primer experimento, se miden simultáneamente las velocidades de ondas, la deformación y el espesor de la muestra. Las mediciones coinciden con las predicciones teóricas que relacionan la velocidad de las ondas acústicas y la densidad de dislocación. Los datos resultantes de la densidad de dislocaciones en función de la tensión en la región plástica obedecen a la regla de Taylor, y las mediciones simultáneas de la velocidad y la tensión aplicada permiten determinar los dos parámetros que aparecen en dicha regla. Se realizan mediciones de difracción de rayos X (XRD), y se lleva a cabo un análisis de Croussard-Jaoul (CJ) para la curva tensión-deformación. Ambos sugieren la presencia de un número creciente de maclas a altas deformaciones. En un segundo experimento se realizan tres ciclos consecutivos de tensión y relajación para una misma muestra de acero. El comportamiento plástico en el primer y tercer ciclo es similar al del primer experimento: Hay un aumento de la densidad de dislocación, determinado a través del cambio en las ondas de cizallamiento. El comportamiento del material durante el segundo ciclo es notablemente diferente, con un aumento de la velocidad de las ondas de corte. Utilizando la teoría clásica del comportamiento de las ondas elásticas en los policristales, se encuentra que este cambio es consistente con una disminución del tamaño del grano debido a la proliferación de maclas. En este trabajo se logra caracterizar mediante ensayos no destructivos los dos mecanismos de deformacion plastica de acero 304L, proliferación de dislocaciones y formación de maclas.

Palabras clave:

Acero 304L

dislocaciones

NDT

ultrasonido

maclado.

Referencias

[1] Elias C. Aifantis. plastic deformation. The physics of International Journal of Plasticity, 3(3):211–247, 1987. 0749-6419. ISSN doi:https://doi.org/10.1016/0749 6419(87)90021-0. URL https://www.sciencedir ect.com/science/article/pii/0749641987900210.

[2] Ryan B. Sills, Michael E. Foster, and Xiaowang W. Zhou. Line-length-dependent dislocation mobilities in an fcc stainless steel alloy. International Journal of Plasticity, 135:102791, 2020. ISSN 0749-6419. doi:https://doi.org/10.1016/j.ijplas.2020.102791. URLhttps://www.sciencedirect.com/science/articl e/pii/S0749641919309453.

[3] Y.Z. Li, Z.Y. Liang, and M.X. Huang. Strengthe ning contributions of dislocations and twins in warm-rolled twip steels. International Journal of Plasticity, 150:103198, 2022. ISSN 0749-6419. doi:https://doi.org/10.1016/j.ijplas.2021.103198. URLhttps://www.sciencedirect.com/science/articl e/pii/S0749641921002643.

[4] Vicente Salinas, Claudio Aguilar, Rodrigo Espinoza-González, Fernando Lund, and Nico lás Mujica. In situ monitoring of dislocation proliferation during plastic deformation using ultrasound. International Journal of Plasti city, 97:178–193, 2017. ISSN 0749-6419. doi:https://doi.org/10.1016/j.ijplas.2017.06.001. URLhttps://www.sciencedirect.com/science/articl e/pii/S0749641916303722.

[5] Agnès Maurel, Vincent Pagneux, Felipe Barra, and Fernando Lund. Wave propagation through a ran dom array of pinned dislocations: Velocity change and attenuation in a generalized Granato and Lüc ke theory. Phys. Rev. B, 72:174111, Nov 2005. doi:10.1103/PhysRevB.72.174111.

[6] Felipe Barra, Rodrigo Espinoza-González, Henry Fernández, Fernando Lund, Agnès Maurel, and Vin cent Pagneux. The use of ultrasound to measu re dislocation density. JOM, 67(8):1856–1863, 2015. doi:10.1007/s11837-015-1458-9. URLhttps://doi.org/10.1007/s11837-015-1458-9.

[7] Carolina Espinoza, Daniel Feliú, Claudio Aguilar, Rodrigo Espinoza-Gonzáez, Fernando Lund, Vicente Salinas, and Nicol s Mujica. Linear versus nonlinear acoustic pro bing of plasticity in metals: A quantitative assess ment. Materials, 11(11), 2018. ISSN 1996 1944. doi:10.3390/ma11112217. URL https: //www.mdpi.com/1996-1944/11/11/2217.

[8] Luca Lutterotti, S Matthies, and HR Wenk. MAUD: a friendly Java program for material analysis using diffraction. IUCr: Newsletter of the CPD, 21(14-15), 1999.

[9] R Delhez, Th H De Keijser, JI Langford, D Louër, EJ Mittemeijer, and EJ Sonneveld. Crystal imper fection broadening and peak shape in the Rietveld method. The Rietveld Method, page 132, 1993.

[10] N. C. Popa. The (hkl) dependence of diffraction line broadening caused by strain and size for all Laue groups in Rietveld refinement. Journal of Applied Crystallography, 31(2):176–180, Apr 1998. doi:10.1107/S0021889897009795.

[11] BE Warren. X-ray diffraction, Dover publications. New York, 253, 1990.

[12] Richard M. Christensen. Observations on the defi nition of yield stress. Acta Mechanica, 196(3):239 244, 2008. ISSN 1619-6937. doi:10.1007/s00707 007-0478-0.

[13] T. Ungár, I. Dragomir, Á. Révész, and A. Borbély. The contrast factors of dislocations in cubic crystals: the dislocation model of strain anisotropy in practice. Journal of Applied Crystallography, 32(5):992–1002, Oct 1999. doi:10.1107/S0021889899009334. URL https://doi.org/10.1107/S0021889899009334.

[14] B. K. Jha, Ram Avtar, V. Sagar Dwivedi, and V. Ra maswamy. Applicability of modified Crussard-Jaoul analysis on the deformation behaviour of dual-phase steels. Journal of Materials Science Letters, 6(8): 891–893, 1987. doi:10.1007/BF01729860. URL https://doi.org/10.1007/BF01729860.

[15] Francisco C. Salvado, F. Teixeira-Dias, Stephen M. Walley, Lewis J. Lea, and João B. Cardoso. A review on the strain rate dependency of the dynamic viscoplastic response of fcc metals. Progress in Ma terials Science, 88:186–231, 2017. ISSN 0079-6425. doi:https://doi.org/10.1016/j.pmatsci.2017.04.004. URLhttps://www.sciencedirect.com/science/articl e/pii/S0079642517300397.

[16] Guilherme Corrêa Soares, Mariana Carla Mendes Rodrigues, and Leandro de Arruda Santos. Influence of temperature on mechanical properties, fracture morphology and strain hardening behavior of a 304 stainless steel. Materials Research, 20:141–151, 2017.

[17] P. Mallick, N.K. Tewary, S.K. Ghosh, and P.P. Chattopadhyay. Microstructure-tensile property correlation in 304 stainless steel after cold deformation and austenite reversion. Materials Science and Engi neering: A, 707:488–500, 2017. ISSN 0921-5093. doi:https://doi.org/10.1016/j.msea.2017.09.070. URLhttps://www.sciencedirect.com/science/articl e/pii/S0921509317312303.

[18] G. I. Taylor. The mechanism of plastic deformation of crystals. Part I. Theoretical. Proceedings of the Royal Society of London. Series A, Containing Papers of a Mathematical and Physical Character, 145(855):362–387, 1934. ISSN 09501207. URL http://www.jstor.org/stable/2935509.

[19] M. E. Kassner. A case for Taylor hardening during primary and steady-state creep in aluminium and ty pe 304 stainless steel. Journal of Materials Science, 25(4):1997–2003, 1990. doi:10.1007/BF01045755. URLhttps://doi.org/10.1007/BF01045755.

[20] Tamás Ungár, Alexandru D. Stoica, Géza Tichy, and Xun-Li Wang. Orientation-dependent evolution of the dislocation density in grain populations with different crystallographic orientations re lative to the tensile axis in a polycrystalline aggregate of stainless steel. Acta Materia lia, 66:251–261, 2014. ISSN 1359-6454. doi:https://doi.org/10.1016/j.actamat.2013.11.012. URLhttps://www.sciencedirect.com/science/articl e/pii/S1359645413008628.

[21] Wei Li, Martina Vittorietti, Geurt Jongbloed, and Jilt Sietsma. The combined influence of grain size distribution and dislocation density on hardness of interstitial free steel. Journal of Materials Science &Technology, 45:35–43, 2020. ISSN 1005-0302. doi:https://doi.org/10.1016/j.jmst.2019.11.025. URL https://www.sciencedirect.com/science/article/pii/ S1005030220300967.

[22] Sigrun Hirsekorn. The scattering of ultrasonic wa ves by polycrystals. The Journal of the Acous tical Society of America, 72(3):1021–1031, 1982. doi:10.1121/1.388233. URL https://doi.org/10.112 1/1.388233.

[23] Sigrun Hirsekorn. The scattering of ultrasonic waves by polycrystals. II. Shear waves. The Journal of the Acoustical Society of America, 73(4):1160 1163, 1983. doi:10.1121/1.389206. URL https: //doi.org/10.1121/1.389206.

[24] G. Sha, M. Huang, M. J. S. Lowe, and S. I. Rokh lin. Attenuation and velocity of elastic waves in polycrystals with generally anisotropic grains: Analytic and numerical modeling. The Journal of the Acoustical Society of America, 147(4):2442 2465, 2020. doi:10.1121/10.0001087.URLhttps://doi.org/10.1121/10.0001087.

[25] Vicente Salinas, Claudio Aguilar, Rodrigo Espinoza-González, Javiera González, Javier Henríquez, Fernando Lund, and Nicolás Mujica. In-situ monitoring of dislocation proliferation during plastic deformation of 304l steel usingultrasound. Materials Science and Enginee ring: A, 849:143416, 2022. ISSN 0921-5093. doi:https://doi.org/10.1016/j.msea.2022.143416. URLhttps://www.sciencedirect.com/science/articl e/pii/S0921509322008073.
