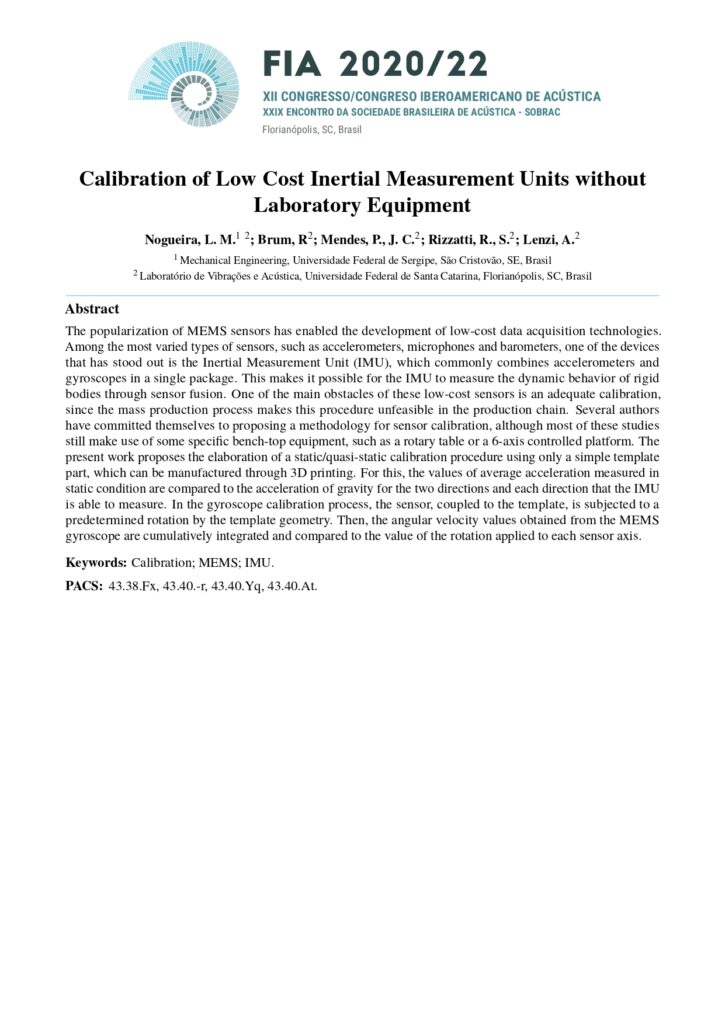

Calibration of Low Cost Inertial Measurement Units without Laboratory Equipment

Nogueira, L. M. Mechanical Engineering, Universidade Federal de Sergipe, São Cristovão, SE, Brasil

Brum, R. Laboratório de Vibrações e Acústica, Universidade Federal de Santa Catarina, Florianópolis, SC, Brasil

Mendes, P. J. C. Laboratório de Vibrações e Acústica, Universidade Federal de Santa Catarina, Florianópolis, SC, Brasil

Rizzatti, R. S. Laboratório de Vibrações e Acústica, Universidade Federal de Santa Catarina, Florianópolis, SC, Brasil

Lenzi, A. Laboratório de Vibrações e Acústica, Universidade Federal de Santa Catarina, Florianópolis, SC, Brasil

Abstract

The popularization of MEMS sensors has enabled the development of low-cost data acquisition technologies. Among the most varied types of sensors, such as accelerometers, microphones and barometers, one of the devices that has stood out is the Inertial Measurement Unit (IMU), which commonly combines accelerometers and gyroscopes in a single package. This makes it possible for the IMU to measure the dynamic behavior of rigid bodies through sensor fusion. One of the main obstacles of these low-cost sensors is an adequate calibration, since the mass production process makes this procedure unfeasible in the production chain. Several authors have committed themselves to proposing a methodology for sensor calibration, although most of these studies still make use of some specific bench-top equipment, such as a rotary table or a 6-axis controlled platform. The present work proposes the elaboration of a static/quasi-static calibration procedure using only a simple template part, which can be manufactured through 3D printing. For this, the values of average acceleration measured in static condition are compared to the acceleration of gravity for the two directions and each direction that the IMU is able to measure. In the gyroscope calibration process, the sensor, coupled to the template, is subjected to a predetermined rotation by the template geometry. Then, the angular velocity values obtained from the MEMS gyroscope are cumulatively integrated and compared to the value of the rotation applied to each sensor axis.

Keywords:

Calibration

MEMS

IMU.

References

[1] Nadim Maluf and Kirt Williams. An Introduction to microelectromechanical systems engineering. Mi croelectromechanical systems series. Artech House, Boston, 2nd ed edition, 2004. ISBN 978-1-58053 590-8.

[2] WTFong, SKOng,andAYCNee. Methodsfor in-field user calibration of an inertial measurement unit without external equipment. Measurement Sci ence and Technology, 19(8):085202, August 2008. ISSN 0957-0233, 1361-6501. doi:10.1088/0957 0233/19/8/085202. URL https://iopscience.iop.org/a rticle/10.1088/0957-0233/19/8/085202.

[3] Laura Vargas-Valencia, Arlindo Elias, Eduardo Ro con, Teodiano Bastos-Filho, and Anselmo Frizera. An IMU-to-Body Alignment Method Applied to Hu manGaitAnalysis. Sensors, 16(12):2090, December 2016. ISSN 1424-8220. doi:10.3390/s16122090. URLhttp://www.mdpi.com/1424-8220/16/12/2090.

[4] He Zhao and Zheyao Wang. Motion Measure ment Using Inertial Sensors, Ultrasonic Sensors, and Magnetometers With Extended Kalman Filter for Data Fusion. IEEE Sensors Journal, 12(5): 943–953, May 2012. ISSN 1530-437X, 1558 1748. doi:10.1109/JSEN.2011.2166066. URL http://ieeexplore.ieee.org/document/5999689/.

[5] Isaac Skog and Peter Handel. CALIBRATION OFAMEMSINERTIALMEASUREMENTUNIT. page 6, 2006.

[6] Jixin Lv, Ankit A. Ravankar, Yukinori Kobayashi, and Takanori Emaru. A method of low-cost IMU calibration and alignment. In 2016 IEEE/SICE International Symposium on System Integration (SII), pages 373–378, Sapporo, Japan, Decem ber 2016. IEEE. ISBN 978-1-5090-3329-4. doi:10.1109/SII.2016.7844027. URL http://ieee xplore.ieee.org/document/7844027/.

[7] Umar Qureshi and Farid Golnaraghi. An Algo rithm for the In-Field Calibration of a MEMS IMU. IEEE Sensors Journal, 17(22):7479–7486, November 2017. ISSN 1530-437X, 1558-1748, 23799153. doi:10.1109/JSEN.2017.2751572. URL http://ieeexplore.ieee.org/document/8031966/.

[8] David Tedaldi, Alberto Pretto, and Emanuele Menegatti. A robust and easy to implement method for IMU calibration without external equipments. In 2014 IEEE International Conference on Robotics and Automation (ICRA), pages 3042–3049, Hong Kong, China, May 2014. IEEE. ISBN 978-1-4799 3685-4. doi:10.1109/ICRA.2014.6907297. URL http://ieeexplore.ieee.org/document/6907297/.

[9] Alberto Pretto and Giorgio Grisetti. Calibration and performance evaluation of low-cost IMUs. page 6, September 2014.

[10] Sebastian O.H. Madgwick, Andrew J.L. Harri son, Paul M. Sharkey, Ravi Vaidyanathan, and William S. Harwin. Measuring motion with kinematically redundant accelerometer arrays: The ory, simulation and implementation. Mechatron ics, 23(5):518–529, August 2013. ISSN 09574158. doi:10.1016/j.mechatronics.2013.04.003. URL https: //linkinghub.elsevier.com/retrieve/pii/S0957415813 000718.
